Particle sizing with classic technologies
HELOS R with RODOS/L & VIBRI/L
QICPIC with RODOS/L & VIBRI/L
NANOPHOX
OPUS

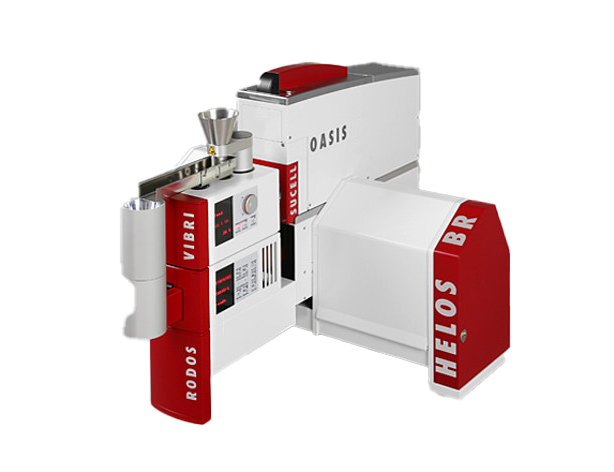

HELOS

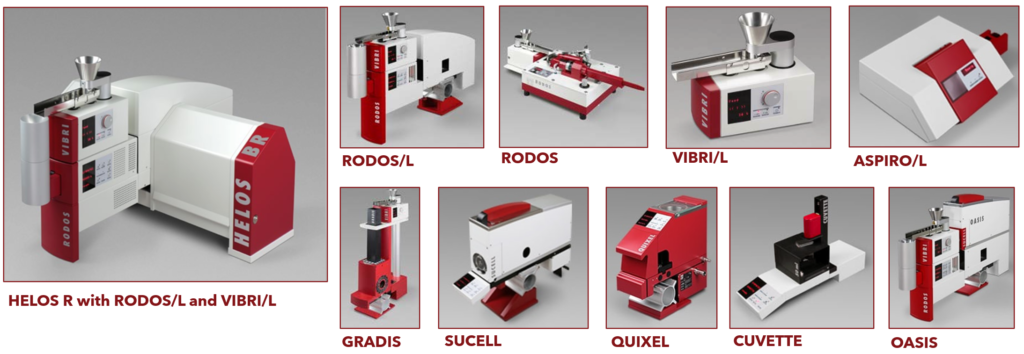

HELOS R Series
The proven HELOS series – with its classical parallel beam laser diffraction set-up – offers a powerful technology for particle size distribution analysis of powders, granules, suspensions, emulsions, sprays and numerous other particulate systems. A size range from below 0.1 µm to 8,750 µm is mastered. The modular sensor reveals its true superiority when operated with feeding and dispersing systems, that guarantee for best adaption to the product sample.

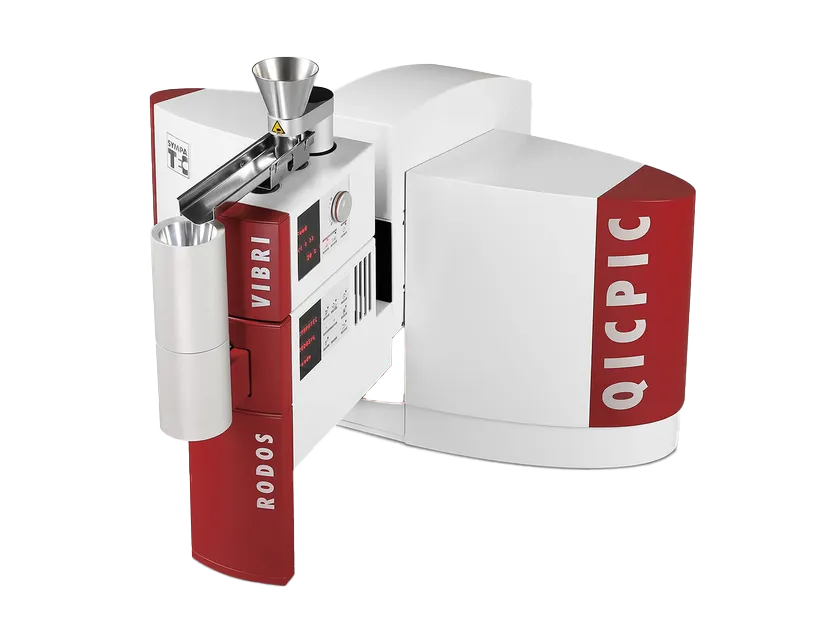

QICPIC
QICPIC Series
Applying components of highest performance our modular particle size and shape analyser QICPIC develops the full power of dynamic image analysis. High speed image analysis using a pulsed light source with illumination times in the nanosecond range the particles are optically frozen while a high-resolution, high-speed camera captures the razor-sharp particle projections with a frequency of up to 500 frames per second. With powerful algorithms QICPIC is evaluating millions of particles in shortest time and guarantees outstanding statistically relevant results. Numerous implementations in pharmaceutical and chemical industry, powder metallurgy, additive manufacturing, food and beverage technology or soil science just denote the array of applications in industry and research.

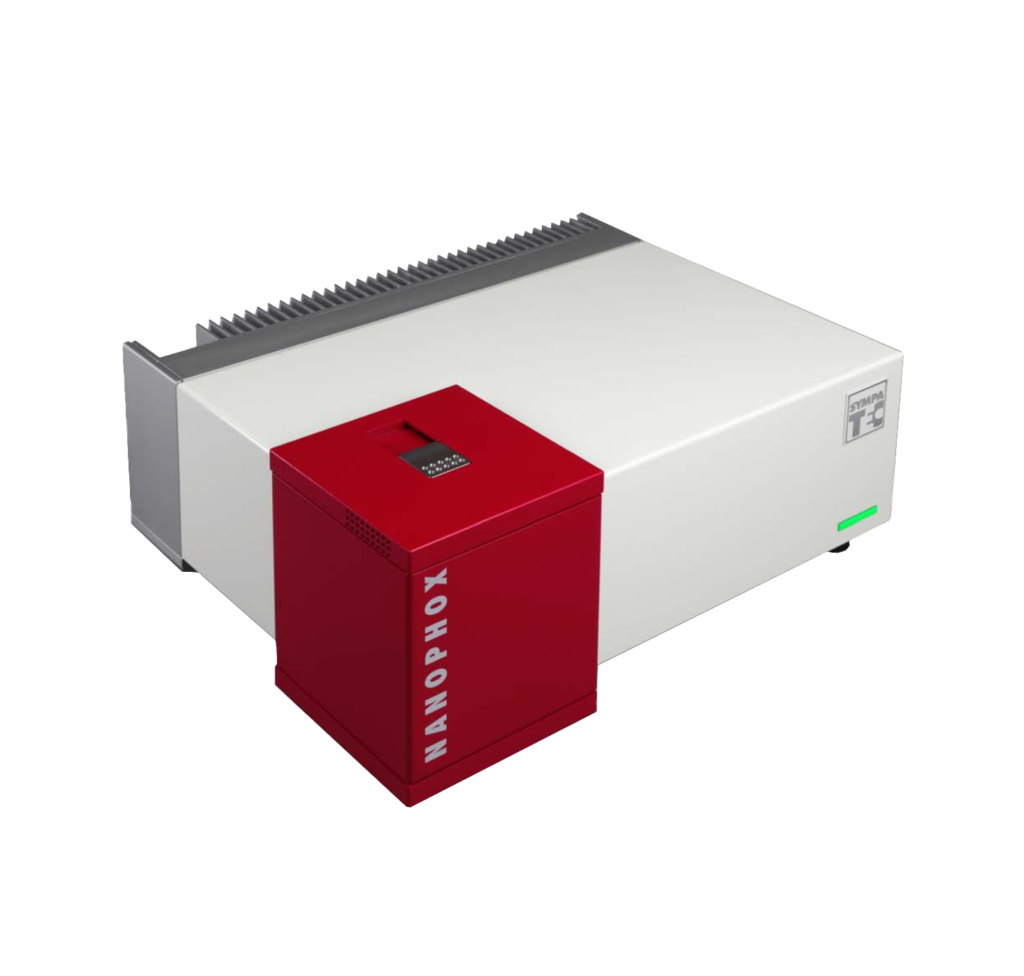

NANOPHOX
In general, the acquisition of scattered light intensities of particles under thermal motion is deployed for nanoparticle characterisation (principle of dynamic light scattering (DLS)). The NANOPHOX CS combines photon cross-correlation spectroscopy (PCCS) with a innovative, patent pending polarisation-separated backscattering technology, which allows for high resolution nanoparticle size analysis in high concentrated suspensions and emulsions ranging from 0.5 nm to 10,000 nm. With only small sample effort, meaningful and repeatable measurements below one minute of sample material in original concentration are realised. Particle size, distribution width and polydispersity are determined just as reliably as the stability of the dispersion with this variant of dynamic light scattering.

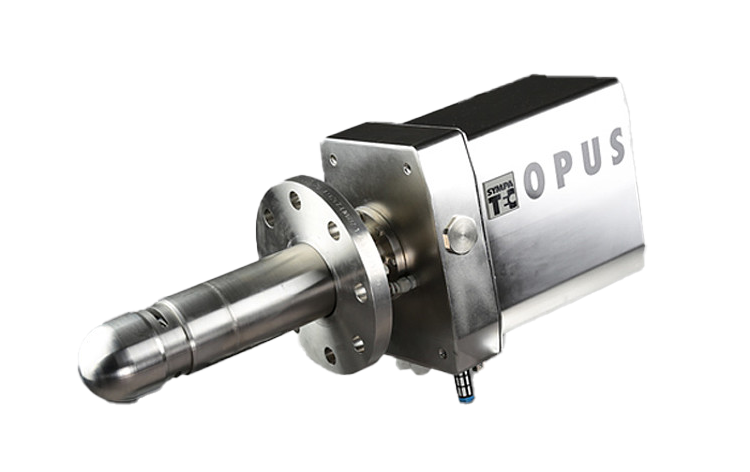

OPUS
The ultrasonic extinction spectrometer OPUS analyses particle size distribution as well as concentration of your suspension or emulsion ranging from below 1 µm to 3 mm. For many years, OPUS is successfully operating in crystallization, grinding and homogenization processes and proves its manifold performances. With various applications, OPUS is repeatedly revealing new insights – not only in production lines but also in pilot plants and lab settings.
